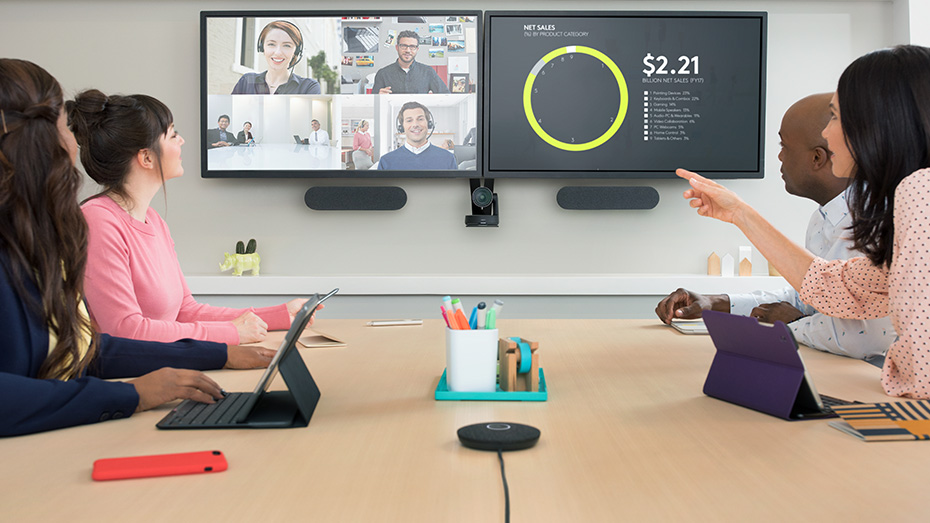

Премиум Ultra-HD видеоконферентна система Logitech Rally предлага видео със студийно качество, несравнима яснота на гласа и автоматизацията на технологията RightSense ™ за по-добри срещи с приложения за видеоконференции, които работят с USB устройства, включително Google Hangouts Meet, Microsoft Skype® For Business, Microsoft Teams и Zoom. С модулно аудио за пълно покритие, умно подреждане на кабелите и качествен дизайн, видеконферентната система Rally лесно се интегрира в средни и големи зали.


Безплатна доставка
5 86600 лв.
В цената има включен данък на стойност 97767 лв..
Изпрати запитване
Добави в любими

Технически характеристики


RALLY Камера

Ultra-HD imaging system supports:

4K, 1440p, 1080p, 900p, 720p, and SD at 30fps

1080p, 720p at 30fps and 60 fps

Smooth motorized pan, tilt and zoom

Pan: ±90°

Tilt: +50° / -90°

15x HD zoom

Field of View:

Diagonal: 90°

Horizontal: 82.1°

Vertical: 52.2

Autofocus

3 camera presets

Kensington security slot

Video mute/unmute LED indicator

Standard tripod thread

Lens parks at -90° in sleep mode for assured privacy

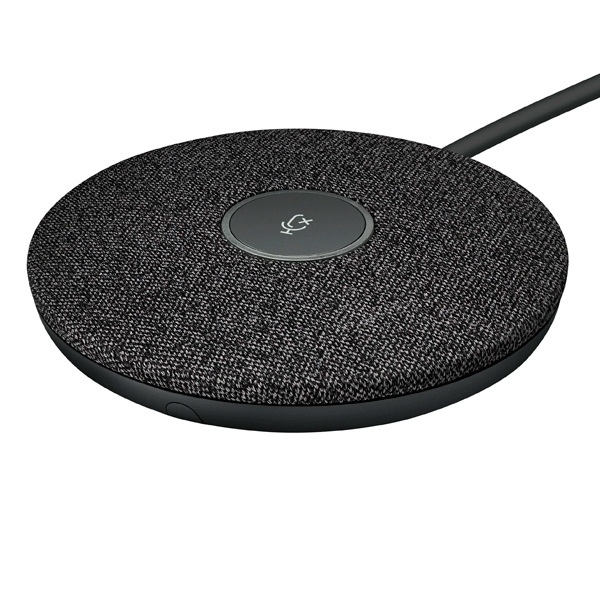

RALLY MIC POD микрофон

Pickup range: 4.5m diameter

Four omnidirectional microphones forming eight acoustic beams

AEC (Acoustic Echo Cancellation)

VAD (Voice Activity Detector)

Background noise suppression

Mute button with LED status indicator

Captive 2.95m 12-pin cable

Daisy chain up to 7 Rally Mic Pods

Frequency response: 90Hz – 16kHz

Sensitivity: >-27dB +/-1dB @ 1Pa

Microphone data rate: 48 kHz

Recommended # of participants:

Rally (one Mic Pod): 10

Rally Plus (two Mic Pods): 16

Additional participants per Mic Pod: 6

Recommended participants for Rally with 7 Mic Pods: 46


RALLY Говорители

High-performance 3" (76mm) driver with rare-earth magnet

Patent-pending suspension system eliminates vibration-induced camera shake and audio interference

Mini XLR cable connects to Rally Display Hub for both signal and power

Speaker volume 95dB SPL @1W, 100dB SPL @7.5W, both +/-2dB at ½ meter

Sensitivity: 95+/-2dB SPL at ½ meter

Distortion: 200Hz–300Hz < 2.5%, 300Hz–10kHz < 1%@7.5W

Speaker sampling rate: 48 kHz


RALLY TABLE HUB

Single CAT6A cable connection to Rally Display Hub ( 5m cable included, supports customer-supplied cables up to 50 m)

Active speaker detection: analyzes audio from up to 7 Mic Pods and 56 beams every 8ms

12 Pin connector for Rally Mic Pod

HDMI Type A passthrough to Display Hub (x2)

USB Type C

USB Type A (reserved for future capability)

USB Type B (connects to meeting room computer)

RJ45 (reserved for future capability)

Power input


RALLY DISPLAY HUB

HDMI Type A (x2) (connects to displays)

USB C (connects to Rally Camera)

USB Type B (connects to meeting room computer)

RJ45 (connects to Table Hub)

Mini XLR (x2)

Powers one or two Rally Speakers

Power input


Дистанционно

RF remote control (line of sight not required)

CR2032 batteries (included)


Кабели/Захранване

Camera to Display Hub

2m USB 3.1 Type C to USB Type C 3.1

Conference Room Computer to Display or Table Hub

2m USB 3.1 Type A to USB Type B

Display Hub to Table Hub

5m CAT6A Ethernet cable (supports customer-supplied cables up to 50 m

Display Hub to Speaker (x2)

2.95m Mini XLR (supports customer-supplied extension cables up to 3m

Conference Room Computer to Displays (x2)

2m HDMI A

Mic Pod

2.95m: Hardwired with 12 pin connector

Power Outlets to Power Supplies (x2)

1m

Power Supplies to Table Hub / Display Hub (x2)

1.5m


Налични аксесоари


RALLY MOUNTING KIT

Rally Mounting Kit with cable retainers (x2) and mounting brackets for camera, speakers (x2), and hubs (x2)


RALLY MIC POD

Deploy up to 7 Rally Mic Pods for greater audio coverage in larger rooms


MIC POD MOUNT

Anchors mics and hides cables for a finished look


RALLY MIC POD HUB

Connect 1-3 Rally Mic Pods (or additional hubs) for placement flexibility and under-table cabling



Съвместимост и сертификати

Plug-and-play USB connectivity

Certified for Skype for Business and Microsoft Teams

Zoom Certified

Fuze Certified

Certified for Google Hangouts Meet Hardware

Microsoft Cortana® certified

Cisco Jabber® and WebEx Compatible

Compatible with BlueJeans, BroadSoft, GoToMeeting, Vidyo, and other video conferencing, recording, and broadcasting applications that support USB cameras


Патенти и технологии


RIGHTSENSE TECHNOLOGIES


RightLight with WDR

Low-light compensation

Video noise reduction

Low-light saturation optimization

Renders natural skin tones for each participant on camera

Reduces backlighting and glare without darkening the entire image.


RightSight

Human figure detection

Auto-frame participants at the meeting start

Auto-frame participants on-demand

Auto-reframe participants during meetings


RightSound

Machine learning AI trained to distinguish human speech from other sounds

AEC (Acoustic Echo Cancellation)

VAD (Voice Activity Detector)

Background noise suppression

Auto-level loud and soft voices


RightSound Mic Matrix

Very low distortion broadside beamforming algorithm steers the factory-paired microphones directly at the talker for the best voice pickup and noise reduction

Supports up to 56 acoustic beams (8 per Rally Mic Pod) to lock onto the active talker

Beam focus refresh rate: 8ms (125 times/second)


Anti-Vibration Suspension:

A patent-pending suspension system decouples the speaker module within the external enclosure, virtually eliminating the vibrations that can travel through walls, stands, and tables. This improves the echo cancelling performance of Rally Mic Pods, while ensuring that video images remain clear and steady, even at high volume levels and when zoomed in.

Peak-limiting algorithm eliminates even momentary speaker clipping to prevent distortion

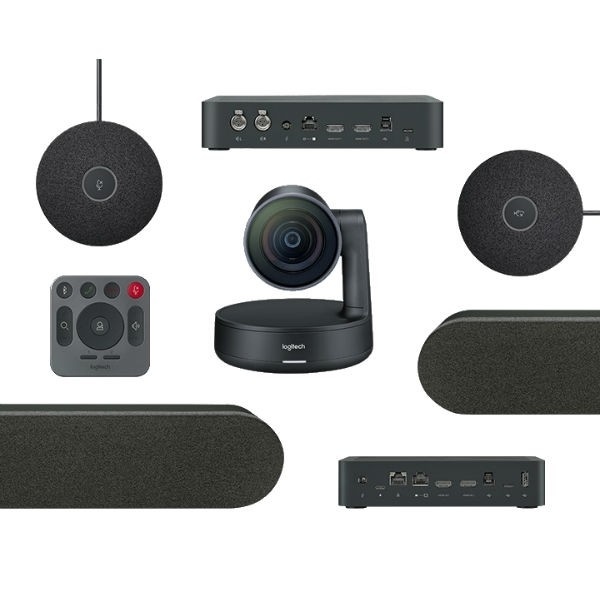

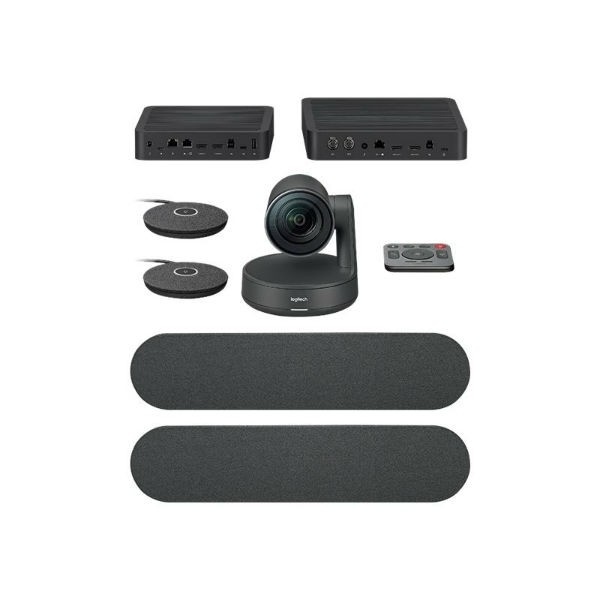

Съдържание на комплекта


Rally Camera

Rally Display Hub

Rally Table Hub

Rally Speaker (x2)

Rally Mic Pod (x2)

Remote control

USB Type C to USB Type C

USB Type A to USB Type B

CAT6A Ethernet cable

HDMI Type A (x2)

A/C cables (x2)

Power Supplies (x2)

Documentation
